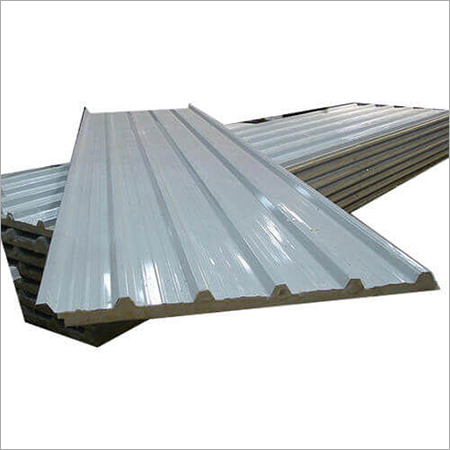

Puf Sandwich Panel

Name: Puf Sandwich Panel
Brand: GLOWMAX ENGINEERS
Price: 1950 INR
Availability: InStock

1950 INR/Square Meter

Get a Price/Quote

Product Details:

Weight Approx 35-50 kg/m3 (Density)
Frame Material Galvanized Iron/Aluminum
Condition New
Dimension (L*W*H) As per Requirement or Standard sizes (Length up to 12 m, Width 1000/1200 mm)
Material Pre-Painted Galvanized Iron (PPGI), Polyurethane Foam (PUF)
Type Insulated PUF Sandwich Panel
Door Optional (Sliding/Hinged, customized)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Puf Sandwich Panel Price And Quantity

Minimum Order Quantity 10 Square Meter
Price 1950 INR/Square Meter

Core Material Rigid Polyurethane Foam (PUF), CFC free
Sound Insulation Effective acoustic barrier
Thermal Conductivity 0.0220.024 W/mK
Fire Rating Up to 2 hours
Manufacturing Standard IS 12436, ISO 9001:2015 Certified
Panel Joint Tongue and Groove with camlock or concealed fasteners
Surface Finish Smooth or Corrugated
Environment Impact CFC & HCFC Free, Sustainable product
Sheet Thickness 0.40 mm0.60 mm (outer sheet), 0.40 mm0.50 mm (inner sheet)
Service Temperature Range -40C to +80C
Color Options White/Grey/Blue, customizable
Water Absorption Less than 1% by volume
Weather Resistance Excellent
Installation Type Wall, Roof, Ceiling applications

Puf Sandwich Panel Product Specifications

Type Insulated PUF Sandwich Panel
Door Optional (Sliding/Hinged, customized)
Feature Fire resistant, Environment friendly, Durable, Easy to Install
Thickness 30-150 mm
Application Cold Storage, Clean Room, Prefabricated Structures, Roof and Wall Cladding
Floor Optional (can be supplied with or without)
Weight Approx 35-50 kg/m3 (Density)
Condition New
Frame Material Galvanized Iron/Aluminum
Dimension (L*W*H) As per Requirement or Standard sizes (Length up to 12 m, Width 1000/1200 mm)
Material Pre-Painted Galvanized Iron (PPGI), Polyurethane Foam (PUF)

Core Material Rigid Polyurethane Foam (PUF), CFC free
Sound Insulation Effective acoustic barrier
Thermal Conductivity 0.0220.024 W/mK
Fire Rating Up to 2 hours
Manufacturing Standard IS 12436, ISO 9001:2015 Certified
Panel Joint Tongue and Groove with camlock or concealed fasteners
Surface Finish Smooth or Corrugated
Environment Impact CFC & HCFC Free, Sustainable product
Sheet Thickness 0.40 mm0.60 mm (outer sheet), 0.40 mm0.50 mm (inner sheet)
Service Temperature Range -40C to +80C
Color Options White/Grey/Blue, customizable
Water Absorption Less than 1% by volume
Weather Resistance Excellent
Installation Type Wall, Roof, Ceiling applications

Puf Sandwich Panel Trade Information

Supply Ability 50 Square Meter Per Week
Delivery Time 5-15 Days

Product Description

Note: Price can be vary as per order.

Our Puf Sandwich Panel is highly appreciated in the industry for its exceptional flexural and compression strength. The panel offers high performance rigid insulation panel in industry specific tasks. Light in weight, this panel is well covered with extended polystyrene protection. Available for clients in different thickness and dimensions to meet their exact needs, Puf Sandwich Panel has high mechanical strength owing to their low density. We are offering this panel to clients at competitive prices.

This Modular PUF Panel is generally requested in sports areas, business premises, workplaces, distribution center and production lines.

Features:

Perfect thickness
Excellent thermal and compressive strength
Water and tamper proof in nature

Application:

Specifications for Sandwich Wall / Ceiling Panels Sandwich type Wall Panel made out of GI
Normal panel Width: 1200 mm (or as per site condition)
Thickness: 40 - 100 mm

Specifications:

Compressive Strength at 10% deformation : 2.1 Kg/sq.c
Tensile Strength : 4.0 Kg/sq.cm
Bending Strength : 4.2 Kg/sq.cm
Adhesion Strength : 3.0 Kg/sq.cm
Closed Cell Content : 90-95%
Temperature Range : -18 deg to +140 deg C

Outstanding Thermal and Fire Performance

The PUF Sandwich Panel boasts impressive thermal conductivity values, ensuring efficient insulation for temperature-sensitive environments. Its fire rating of up to two hours and effective acoustic barrier properties further enhance safety and comfort within installations like cold storage, clean rooms, and commercial structures.

Flexible Design for Various Applications

Available in a wide range of thicknesses, lengths (up to 12 meters), and widths, these panels can be tailored to the specific needs of any project. Customizable colors, surface finishes, and optional doors or floors make them suitable for walls, roofs, ceilings, and prefabricated buildings throughout India.

Eco-Friendly Construction and Compliance

Engineered with CFC and HCFC free polyurethane foam, the panels are compliant with IS 12436 and ISO 9001:2015 standards. Their sustainable design supports pollution reduction and energy efficiency, making them a responsible choice for eco-conscious projects.

FAQs of Puf Sandwich Panel:

Q: How are PUF Sandwich Panels installed for different applications?

A: PUF Sandwich Panels use tongue and groove joints with camlock or concealed fasteners, ensuring quick and secure installation on walls, roofs, and ceilings. The modular design simplifies assembly in prefabricated structures and cladding projects.

Q: What is the process of customizing PUF Sandwich Panels for project needs?

A: Panels can be tailored in length (up to 12 meters), width (1000/1200 mm), thickness (30150 mm), color (white, grey, blue, or custom), and surface finish (smooth or corrugated). Optional features such as integrated doors (sliding or hinged) and floors can be added based on requirements.

Q: Where are PUF Sandwich Panels commonly used in construction and industry?

A: These panels are widely utilized in cold storage facilities, clean rooms, roof and wall cladding, prefabricated buildings, and spaces needing controlled temperature and sound insulation. They are popular in industrial, commercial, and healthcare sectors across India.

Q: When should PUF Sandwich Panels be chosen for a building project?

A: Select PUF Sandwich Panels when you require high thermal insulation, effective acoustic barriers, fire resistance up to two hours, and rapid installation for environments like cold storages, clean rooms, or modular constructions.

Q: What are the benefits of using CFC & HCFC free PUF core material?

A: The CFC & HCFC free PUF core provides excellent thermal insulation, reduces environmental impact, and complies with sustainability standards, making these panels an eco-friendly choice for modern construction.

Q: How effective is the sound insulation of PUF Sandwich Panels?

A: The panels function as an efficient acoustic barrier, helping minimize noise transmission between spaces. This feature is especially beneficial in facilities where sound control is crucial, such as clean rooms or commercial buildings.
